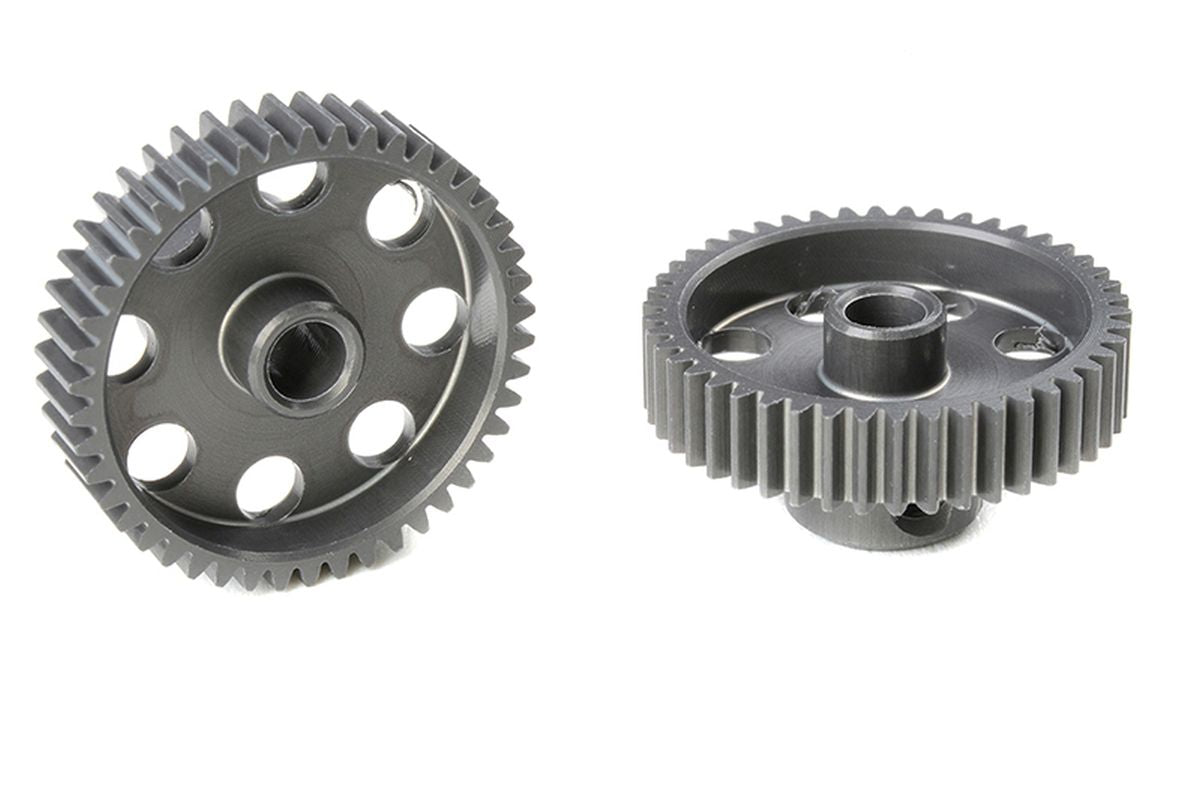

70346 - 64 DP Pinion - Short - Hard Anodized AL7075 - 46Teeth - Shaft Dia. 3.17mm

High-strength 46T pinion gear made from tough 7075 T6 alu and specially hardcoated for superior strength, light weight, and high durability. Created on a special gear machine, all pinions feature ultra-precise tooth shaping and ultra-true running for vibration-free operation. Each pinion is marked with the tooth number for easy and quick identification.

---

Features:

• 7075 T6 hard anodised aluminum
• CNC cut teeth for perfect teeth shape and concentricity
• Module 64DP
• 46T
• For 3.17mm motor shafts
• Fits all 64DP geared cars
• Made in Europe

---

Specifications:

• Gear Pitch: 64 DP
• Nr of Teeth (T): 46
• Material: 7075 T6 Alu. - Hard Anodised
• Motor Shaft Dia. (mm): 3.17 mm
• Teeth Width (mm): 4
• Gear Length (mm): 9
• Hex Key Size: 1.5mm Hex
